IMC-M
Icas, have a series of micro Fire Panels for use with different detectors and in different applications.
- IMC-Me, is a Fire Panel with 2 conventional zones, used together with our Chor-E optical smoke detector. This is a solution done for smaller applications i.e. appartments,private houses,common area's in smaller appartment buildings, Kindergardens, Pre-schools etc. The panel have a function which can activate the Sounders in all the installed detectors in one loop if a Fire Alarm is activated.
- IMC-M.12, is a fire panel for 12v supplied detectors, i.e.Icas 300 series detectors.

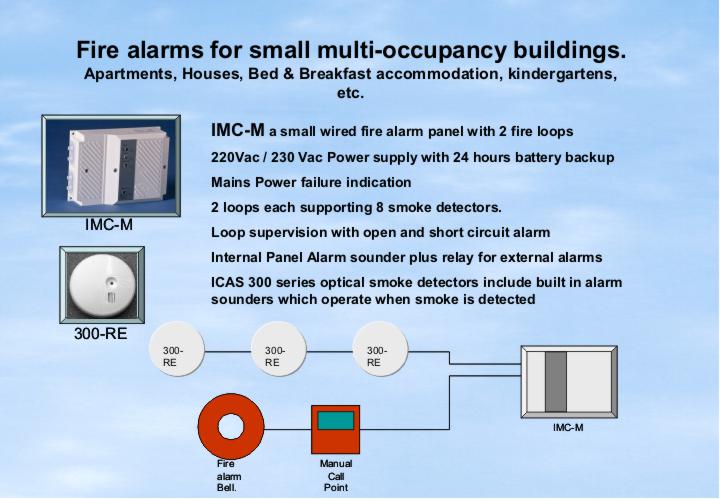

Note! The 300RE in the below sketch is used with IMC-M.12 otherwise the use with Chor-E and IMC-ME is the same.-
![](/eng/bilder/System%20IMC-M.jpg)
|
|
|
|
